- Place of Origin: shandong
- Brand Name: BAIMAI
- Model Number: TC4808-QTZ40
2016 hot sale chinese famous brand tower crane TC4808-QTZ40
Technical Parameter:
Model | TC4808 |
Rated Lifting Moment | 400KN.M |
Max. Lifting Load | 4t |
Tip Load | 0.8t |
Max. Lifting Height | 120m |
Free standing height | 30m |
Rope length | 400 |
Span（jib length） | 48m |
Working range | 5-48 |
Slewing speed | 0.7/0.35 （r/min） |
Trolley speed （Derricking speed） | 38.6/25.2 m/min |
Jacking-up speed climbing speed | 0.4 m/min |
Counter jib length | 11.18m |
Power supply | 380V/50Hz or according to client's requirments |
Power Capacity | 25.82Kw |
Electric switch box | Schneider |
Hoisting speed | (a=2)65.14/32.57/7.;(a=4)32.14/15.60/3.5 |
Main Material | L140*12mm (angled steel Q235B) |
Mast section | 1.5*1.5*2.2m (block structure) |
The advantages about Baimai Tower Crane
1. The large-scale luffing tower crane is equipped with heavy main hoisting system. Big lifting capacity.
2. The crane can climb following the the building structure due to the use of special climbing system. The lifting height has increased largely.
3. Big rolling angle of the crane boom, small rear turning radius ,suitable for the small construction site.
4. Suitable for the crossover work of the cranes.
5. Good performance of the boom combination, can realize the multiple working range.
6. The machine is equipped with the safety monitoring system. Display the the working conditions of the cranes all the time.
Our Services
1. Help you choose the most suitable machine.
2. Making the machine according to your request.
3. Give you machine’s details and vedio for help you use the machine more better.
4. One year warranty
5. Quality problem,we will send you the accessorise.
6. Free repair whole using life without extra charge
Company Information

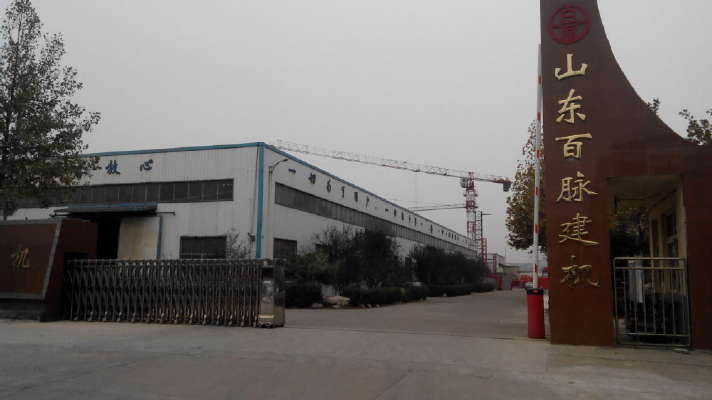

Shandong Baimai Construction Machinery Co., Ltd is the professional crane and lift platform manufacturer in China .We mainly
Design, Manufacture, Installation, Repair , Maintenance, Trade and Export all kinds Electric Hoists,
Overhead Cranes, Jib Cranes,Tower Crane, and so on. We are sure we will be your best choice.
Please contact me before more details and best price
Cherry Zhang
Mobile: 86-15820019181
Email:cherry@bmtowercrane.com
