- Place of Origin: Jinan,Shandong,China
- Brand Name: BAIMAI
- Model Number: QTZ50-TC5010
- Weight: 1000.000 kg
Quick Details
Condition: New Place of Origin: Jinan,Shandong,China (Mainland)
Brand Name: BAIMAI Model Number: TC5010-QTZ50
Jib length(m): 50 Rated Lifting Moment (kN.m):570
Tip load(t): 1 Free standing height(m): 35
Max lifiting load(t) : 5 Max height with attachment(m): 120
Certificate: ISO9001, CE Warranty: one year
Technical Parameters
Model | TC5010-QTZ50 | |||
Basic Information | Rated Lifting Moment (kN.m) | 570 | ||
Jib length(m) | 50 | |||
Tip Load (T) | 1 | |||
Max. Lifting Load (T) | 4/5 | |||
Free Standing Height (m) | 30/35 | |||
Max height with attachment(m) | 120 | |||
Details Configuration | ||||
Lifting System | Motor | Power(kw) | 18/18/5 | |
Reducer | center distance | 450mm | ||
Lifting Speed(m/min) | (a=2) | (a=4) | ||
Steel Wire Rope | Specification | 6x19-12.5-zs | ||
Slewing system | Motor | Power(kw) | 3.7 | |
Reducer | Output Torque(N.m) | 10000 | ||
Reducer Type | XX4-80 | |||
Slewing Speed | (r/min) | 0.46/0.7(0～0.62) | ||
slewing abutment | Specification | HSW.32.1220 | ||
Luffing system | Motor | Power(kw) | 2.2/2.8 | |
Luffing Speed | (m/min) | 38/26 | ||
Steel Wire Rope | Specification | 6x1-8-zs | ||
Jacking system | Jacking speed | (m/min) | 0.7 | |
Motor | Power(kw) | 5.5 | ||
Diameter of cylinder | (mm) | φ125/φ90 | ||
Other Accessories | working pressure | 20Mpa | ||
Main Cable | Specification | 3×10mm2 2 | ||
Main Electrical Used Schneider | Stainless Steel Cabinets | Space cragt Cabin | ||

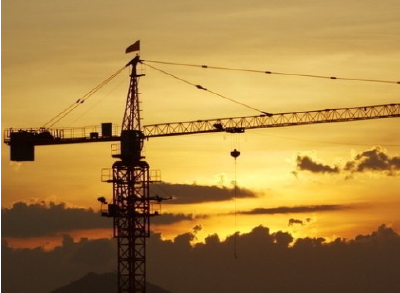

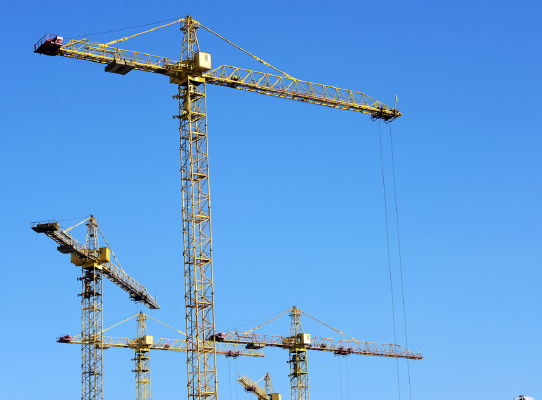

TC5010 Tower Crane Introduction
1. Advanced Technology: Performance parameterd and technical indicators have reached the leading domestic and international advance level, the maximum working rang of 42 meters, an increase of tower crane’s working space.
2. Attractive Design: Good Shape the form of an international pop machine, also can customized according to clients’ requirments.
3. High Quality Production: High operating speed , speed performance, smooth and efficient.Rigid doubl-rod boom suspension, rigid, light weight, small cross section.
4. Stable Structure: This kind of crane adopts standard section hydraulic lifting and connecting ensure safe and reliable.
5. Efficient Electrical Control System: SCHNEIDER electrical components ensure reliable and safe mechanism of A CLASS tower crane.
6. Reliable and Safety Cab: Indepedent of side cab, good vision, creativity to the operator a good enviroment. Cast steel brake wheel, hoisting mechanism is tested in multi-ways.
7. Easy Maintenance and Low Cost: We supply maintenance video with tower crane to help clients know how to install tower crane, and how to repair when the tower crane break down.
Company Information
Shandong Baimai Construction Machinery Co., Ltd is the professional crane and lift platform manufacturer in China . We mainly Design, Manufacture, Installation, Repair , Maintenance, Trade and Export all kinds Construction elevator, Tower Crane. We are sure we will be your best choice. Warmly welcome friends come and visit our factory!
- Place of Origin: Jinan,Shandong,China
- Brand Name: BAIMAI
- Model Number: QTZ50-TC5010
- Weight: 1000.000 kg
Technical Parameters
Model | TC5010-QTZ40 | |||
Basic Information | Rated Lifting Moment (kN.m) | 570 | ||
Jib length(m) | 50 | |||
Tip Load (T) | 1 | |||
Max. Lifting Load (T) | 4/5 | |||
Free Standing Height (m) | 30/35 | |||
Max height with attachment(m) | 120 | |||
Details Configuration | ||||
Lifting System | Motor | Power(kw) | 18/18/5 | |
Reducer | center distance | 450mm | ||
Lifting Speed(m/min) | (a=2) | (a=4) | ||
Steel Wire Rope | Specification | 6x19-12.5-zs | ||
Slewing system | Motor | Power(kw) | 3.7 | |
Reducer | Output Torque(N.m) | 10000 | ||
Reducer Type | XX4-80 | |||
Slewing Speed | (r/min) | 0.46/0.7(0～0.62) | ||
slewing abutment | Specification | HSW.32.1220 | ||
Luffing system | Motor | Power(kw) | 2.2/2.8 | |
Luffing Speed | (m/min) | 38/26 | ||
Steel Wire Rope | Specification | 6x1-8-zs | ||
Jacking system | Jacking speed | (m/min) | 0.7 | |
Motor | Power(kw) | 5.5 | ||
Diameter of cylinder | (mm) | φ125/φ90 | ||
Other Accessories | working pressure | 20Mpa | ||
Main Cable | Specification | 3×10mm2 2 | ||
Main Electrical Used Schneider | Stainless Steel Cabinets | Space cragt Cabin | ||
