- Place of Origin: Shandong
- Brand Name: BAIMAI
- Model Number: QTZ50-TC5013

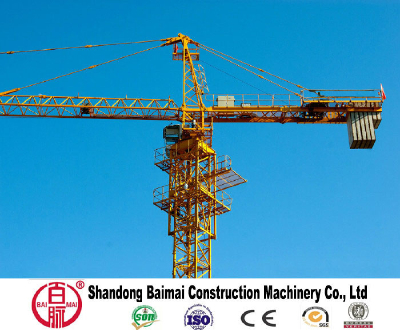

5 ton capacity tower crane model QTZ50-TC5013
Quick Details:
| Feature: | Tower Crane | Condition: | New | Application: | Construction |
| Rated Loading Capacity: | 6t | Rated Lifting Moment: | 780KN.M | Max. Lifting Load: | 6t |
| Max. Lifting Height: | 36.7m | Span: | 2.9m-55m | Place of Origin: | Shandong, China (Mainland) |
| Brand Name: | Baimai | Model Number: | C5510 | Certification: | CE, Russian GOST and ISO9001 certificate |
| Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas | type: | Topkit tower crane |
| Steel: | Q345B manganese steel | Standard mast: | 1.4*1.4*3m Or 1.6*1.6*3m | Power: | 380V/50HZ,440V/60HZ |
| Hoisting mechanism: | 33 LVF15B Or 33RPC15D | Ballast boom: | 13m | Crane weight: | 45t |
| Color: | Yellow, red | business type: | Manufacturer, supplier |
Technical Parameters
name | unit | QTZ63/5010 | |||||||
rated hoisting moment 额定起重力矩 | kN.m | 630 | |||||||
max.hoisting moment 最大额定起重力矩 | kN.m | 630 | |||||||
max.hoisting load 最大起重量 | t | 5 | |||||||
Tipload最大额定起重量 | t | 1.095(2)/0.989(4) | |||||||
working radius 工作范围 | m | 3～50 | |||||||
hoisting height 起升高度 | free-standing 独立高度 | m | 35 | ||||||
Climbing 附着 | m | 120 | |||||||
hoisting speed 起升速度 | fall | a=2 | a=4 | ||||||
hoisitng speed 起升速度 | m/min | 8.58 | 11.7 | 39 | 11.7 | 39 | 78 | ||
max.load 最大承重 | t | 2.5 | 2.5 | 1 | 5 | 5 | 2.5 | ||
slewing speed 回转速度 | r/min | 0.6 | |||||||
trolleying speed小车速度 | m/min | 38.6/25.2 | |||||||
top-rising speed 顶升速度 | m/min | 0.7 | |||||||
tower crane weight 塔机重量 | structure weight钢结构重量 | t | 24.1 | ||||||
balance weight 配重重量 | t | 10.5 | |||||||
tower crane weight 塔机重量 | t | 34.6 | |||||||
max.slewing radius 回转半径 | m | 51.2 | |||||||
afterbody slewing radius 尾部回转半径 | m | 11.86 | |||||||
max.working wind-speed(not more than) 最大工作风速 | m/s | 20 | |||||||
max.height wind-speed(not more than) 最高风速 | m/s | 12 | |||||||
working environment temperture | °C | ,-20～40 | |||||||
hoisting mechnism 起机构 | motor | type | YZTD200L-4/8/24 | ||||||
power | KW | 18/18/5 | |||||||
speed | r/min | 1440/720/220 | |||||||
braker | type | YWZ250/45 | |||||||
brake moment | N.m | ||||||||
hydraulic impeller | |||||||||
reducer | type | ||||||||
reduction ratio | |||||||||
steel rope | 12.5 | ||||||||
slewing mechnism 回转机构 | motor | type | YZR132M2-4 | ||||||
power | KW | 5.5 | |||||||
speed | r/min | 908 | |||||||
braker | |||||||||
reducer | type | TX130-240 | |||||||
fluid coupling | type | YOX-280A | |||||||
slewing abutment | 011.40.1120 | ||||||||
trolleying mechnism 变幅机构 | motor | type | YDZ112M-4/6 | ||||||
power | KW | 2.2/2.8 | |||||||
speed | r/min | 930/1410 | |||||||
reducer | type | TXB300 | |||||||
reduction ratio | |||||||||
steel rope | 7.7 | ||||||||
top-rising mechnism顶升机构 | motor | type | |||||||
power | KW | 5.5kW | |||||||
speed | r/min | ||||||||
hydaulic oilcylinder | type | ||||||||
piston stroke | mm | 1300 | |||||||
working pressure | Mpa | 20 | |||||||
Product description
1. The tower crane is advanced in parameters.
2. reliable in performances.
3. beautiful in appearance.
4. high in quality.
5. simple in structure and easy in operation.
Horizontional arm tower crane is absorbing H3/36b technology of POTAIN campany in France ,to design and manufacture of large rotary tower crane. The machine design novel,the tower type structure ,convenient assembly and disassembly; hoisting,luffing,slewing,walking,climbing and other agencies are using foreign technology ,advanced and reliable performance. The machine has a track waliking type,fixed type, attachment and various types of climbing.The Company sophisticated processsing equipment, strict quality management ,the quality excellent, users are welcome to choose.
Our Services
1.We can design the customerized tower crane as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the tower crane break down to help you repair.
Company Information
Shandong Baimai Construction Machinery Co., Ltd is the professional crane and lift platform manufacturer in China .We mainly
Design, Manufacture, Installation, Repair , Maintenance, Trade and Export all kinds Electric Hoists,
Overhead Cranes, Jib Cranes,Tower Crane, and so on. We are sure we will be your best choice.
