- Place of Origin: Jinan,Shandong,China
- Brand Name: BAIMAI
- Model Number: TC5010-PT60
Quick Details
Condition: New Place of Origin: Jinan,Shandong,China (Mainland)
Brand Name: BAIMAI Model Number: TC4208-QTZ40
Jib length(m): 50 Hoisting Speed: 33m/min
Tip load(t): 1.0 Free standing height(m): 30
Max lifiting load(t) : 4 Max height with attachment(m): 120
Certificate: ISO9001, CE Warranty: one year

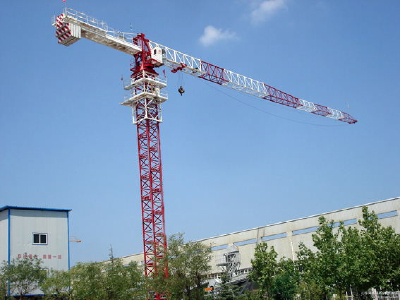

TC5010-PT60 Flat top Tower Crane Introduction
1.Safe and convenient. Reduce the dismounting requirements, lower weight, low mounting height, dismount each mast at a time in the air, save the labor cost, safety and fast.
2. Suitable for crossover work of the cranes. Without the tower cap and pull rod, the safety will be increased when there need the crossover work.
3. Suitable for the special requirement about the height. Such as airport nearby, tunnel, workshop ,and the construction site with high-tension cable.
4. Suitable for the construction site that has the requirement about the crane boom. It can be used as internal climbing crane in the high-rise buildings, irregular roof or small areas.
5. The crane boom is good applicability. High-usage, the design of the topless tower crane boom is easy for realizing the serialization and standardization.
Company Information

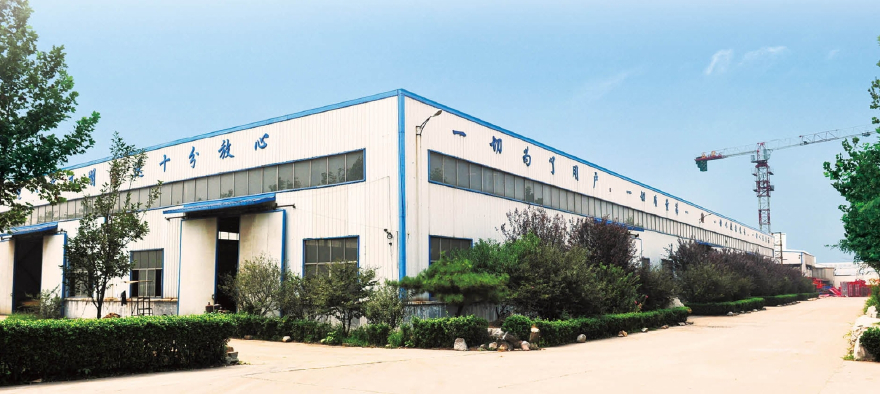

Shandong Baimai Construction Machinery Co., Ltd is the professional crane and lift platform manufacturer in China . We mainly Design, Manufacture, Installation, Repair , Maintenance, Trade and Export all kinds Construction elevator, Tower Crane. We are sure we will be your best choice. Warmly welcome friends come and visit our factory!
Please contact me before more details and best price.
Daria Ge
Mobile: 86-15863191711
Email:daria@bmtowercrane.com
- Place of Origin: Jinan,Shandong,China
- Brand Name: BAIMAI
- Model Number: TC5010-PT60
Model | PT60(5010) | |||
Basic Information | Rated Lifting Moment (kN.m) | 600 | ||
Jib length(m) | 50 | |||
Tip Load (T) | 1.0 | |||
Max. Lifting Load (T) | 4 | |||
Free Standing Height (m) | 30 | |||
Max height with attachment(m) | 120 | |||
Details Configuration | ||||
Lifting System
| Motor | Power(kw) | 15/15/4 | |
Reducer | center distance | 450mm | ||
Lifting Speed(m/min) | (a=2) 62/31/7.7 | (a=4) 30/15/3.8 | ||
Steel Wire Rope | Specification | 6x19-12.5-zs | ||
Slewing system | Motor | Power(kw) | 3.7 | |
Reducer | Output Torque(N.m) | 10000 | ||
Reducer Type | XX4-80 | |||
Slewing Speed | (r/min) | 0～0.62 | ||
slewing abutment | Specification | HSW.32.1220 | ||
Luffing system
| Motor | Power(kw) | 2.2/3.3 | |
Luffing Speed | (m/min) | 33/22 | ||
Steel Wire Rope | Specification | 6x1-8-zs | ||
Jacking system
| Jacking speed | (m/min) | 0.4 | |
Motor | Power(kw) | 4 | ||
Diameter of cylinder | (mm) | φ125/φ90 | ||
Other Accessories | working pressure | 20Mpa | ||
Main Cable | Specification | 3×10mm2 2 | ||
Main Electrical Used Schneider | Stainless Steel Cabinets | Space cragt Cabin | ||
