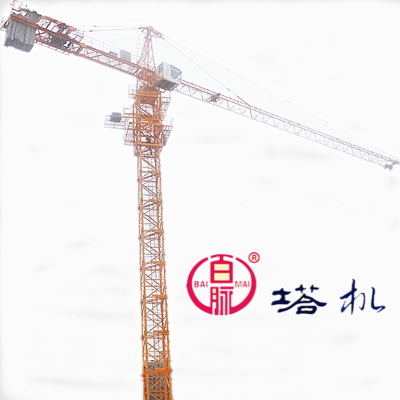

50m jib length High quality small building tower crane qtz63(5010)

50m jib length High quality small building tower crane qtz63(5010)

  • Min.Order Quantity: 1 Set
  • Supply Ability: 86 Sets per Year
  • Port: Qingdao port
  • Payment Terms: L/C,D/A,D/P
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1995-11-27
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  BAIMAI
  • Model Number:  qtz63(5010)
  • Weight: 5300.000 kg

Quick Details

  • Feature: Tower Crane

  • Condition: New

  • Application: Building construction

  • Rated Loading Capacity: 4ton

  • Rated Lifting Moment: 400kn.m

  • Max. Lifting Load: 4ton

  • Max. Lifting Height: 150m

  • Span: 2.5-50

  • Place of Origin: Shandong, China (Mainland)

  • Brand Name: baimai

  • Model Number: TC5010

  • Certification: iso ce

  • Warranty: Steel structure warranty for life

  • After-sales Service Provided: Overseas third-party support available

  • Surface treatment: Spray paint

  • color: Can be customized


  • Place of Origin:  China
  • Brand Name:  BAIMAI
  • Model Number:  qtz63(5010)
  • Weight: 5300.000 kg

Main Technical Parameters

Name

Unit

Parameters

Nominal hoisting moment

kN.m

400

Max. Hoisting weight

t

4

Rated hoisting weight at jib nose

t

1

Working radius

m

2.5—48

Height (m)

Anchoring

M

30

Climbing

m

150

Hoisting speed

Magnification


2X

4X

Hoisting speed

M/min

8

40

80

4

20

40

Max. Hoisting weight

t

3

3

1.5

6

6

3

Swing speed

R/min

0.68

Radius changing speed

M/min

22/44

Top rising speed

M/min

0.5



Tower crane weight

Net weight (anchoring)

T


Ballast weight

T


Total weight (anchoring)

T


Working swing radius

M


Rear swing radius

M

12.06

Maximum working wind speed

M/S

20

Maximum wind speed for top rising

M/S

13

Ambient temperature

°C

-20~ 40
