- Size: 150CBM
- Place of Origin: Shandong Province
- Brand Name: BAIMAI
- Model Number: TC5013-QTZ80
- Weight: 30000.000 kg
- :
- :
- :
- :
- :

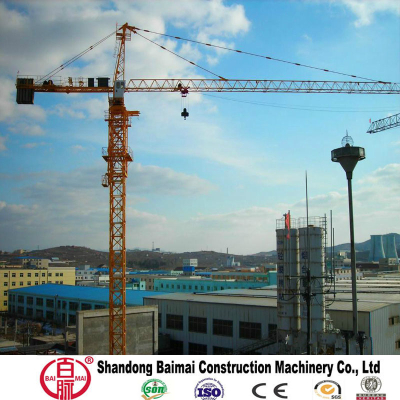

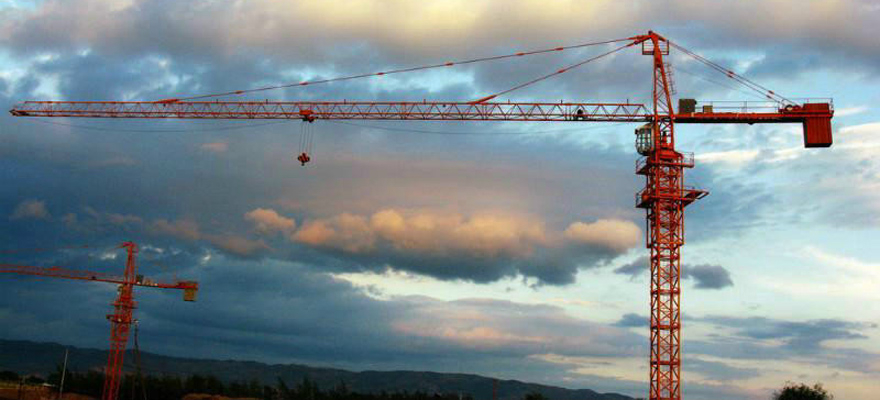

Characteristics of QTZ tower crane:
1. Advanced Technology: Performance parameterd and technical indicators have reached the leading domestic and international advance level, the maximum working rang of 42 meters, an increase of tower crane’s working space.
2. Attractive Design: Good Shape the form of an international pop machine, also can customized according to clients’ requirments.
3. High Quality Production: High operating speed , speed performance, smooth and efficient.Rigid doubl-rod boom suspension, rigid, light weight, small cross section.
4. Stable Structure: This kind of crane adopts standard section hydraulic lifting and connecting ensure safe and reliable.
5. Efficient Electrical Control System: SCHNEIDER electrical components ensure reliable and safe mechanism of A CLASS tower crane.
6. Reliable and Safety Cab: Indepedent of side cab, good vision, creativity to the operator a good enviroment. Cast steel brake wheel, hoisting mechanism is tested in multi-ways.
7. Easy Maintenance and Low Cost: We supply maintenance video with tower crane to help clients know how to install tower crane, and how to repair when the tower crane break down.
- Size: 150CBM
- Place of Origin: Shandong Province
- Brand Name: BAIMAI
- Model Number: TC5013-QTZ80
- Weight: 30000.000 kg
- :
- :
- :
- :
- :
Model | TC5013-QTZ80 | ||||
Basic Information | Rated Lifting Moment (kN.m) | 780 | |||
Jib length(m) | 50 | ||||
Tip Load (T) | 1.3 | ||||
Max. Lifting Load (T) | 6 | ||||
Free Standing Height (m) | 40 | ||||
Max height with attachment(m) | 151.2 | ||||
Details Configuration | |||||
Lifting System | Motor | Power(kw) | 24/24/5.4 | ||
Reducer | center distance | 450mm | |||
Lifting Speed(m/min) | (a=2) | (a=4) | |||
Steel Wire Rope | Specification | 6x19-12.5-zs | |||
Slewing system | Motor | Power(kw) |
| ||
Reducer | Output Torque(N.m) | 10000 | |||
Reducer Type | XX4-80 | ||||
Slewing Speed | (r/min) | 0～0.62 | |||
slewing abutment | Specification | HSW.32.1220 | |||
Luffing system | Motor | Power(kw) | 2.2/2.8 | ||
Luffing Speed | (m/min) | 48/24 | |||
Steel Wire Rope | Specification | 6x1-8-zs | |||
Jacking system | Jacking speed | (m/min) | 0.7 | ||
Motor | Power(kw) | 5.5 | |||
Diameter of cylinder | (mm) | φ125/φ90 | |||
Other Accessories | working pressure | 20Mpa | |||
Main Cable | Specification | 3×10mm2 2 | |||
Main Electrical Used Schneider | Stainless Steel Cabinets | Space cragt Cabin | |||
Packaging & Shipping
Metal parts: Nude packing,
Motor, engine, Cabin: wooden box,
Accessories, spare parts: in iron box or bag,
Delivery time: 15-20 days after deposit,
Container Qty.: 6*40HC.
FAQ:
1.Are you a trader or manufacturer?
We are 22 years tower crane manufacturer, which means that we can off you the best price and provide you the quick feedback after-sale service.
2.What is the warranty term of your product?
The warranty term of our product is 12 months. Within warranty, if there is any quality defect, we will send you the broken parts by airplane or send engineer to you to solve it.
3.What is the shipping way?
It depends on the destination. Usually, there are four ways: by shipment, by railway, by truck to border or multi-model transportation. Container mainly are the 40HC and 20GP.
4. How to make the installation? Can you send engineer to us?
First, we will send you all the technical documents, such as foundation drawing, installation manual, operation manual. If you have professional engineer, you can finish it by yourself.
Second, we also can send our engineer to guild you on installation. The cost will belongs to the buyer, cost are mainly including visa application, round-trip tickets, provide accommodation, and pay 70 USD/day allowance for each engineer.
5. What about spare parts? Where can I get them?
It is strongly recommended you purchase some shipped along with the equipment.we can offer you the spare parts list to select.
6.Can you accept OEM or ODM?
Of course. Logo is also acceptable.
7. If we can be your agent? What benefits we can get from being your agent?
First, we are looking for the agent, dealer, sole agent all over the world, especially for the one who has a team of experienced workman and can handle the equipment installation.
Agent are enjoy the Price cut, Marketing promotion, Technical support, Personnel training, Rebate policy, etc. (all being listed in the Dealership Agreement).
