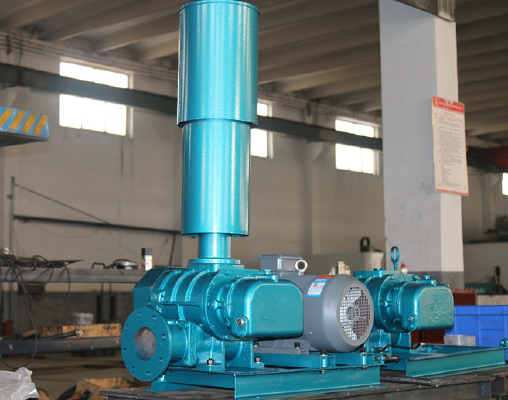

Baimai BMSR-series Three Leaves Roots Blower

Baimai BMSR-series Three Leaves Roots Blower

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Year
  • Port: Chinese ports
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1995-11-27
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1
  • Place of Origin:  Zhangqiu,Shandong,China
  • Brand Name:  BAIMAI
  • Model Number:  BMSR-50
  • Weight: 128.000 kg

Technical Features

BMSR-50

1.Wide range air capacity and high wind pressure

1)Air capacity ranges from 3.58—348.25 m³/min;

2) Wnd pressure ranges from 19.6 to 98kPa ;widely used in chemical,petrolic and electrical industry.

2.High efficiencyPerfect meshing impeller assure less leak.

3.Lower noisy and reliable operation1)Ductile iron impeller;2)5 level precision gear.

4.Lighter weight and smaller sizeCompact construction.

5.Many models and full specificationsto meet the needs of different users.

6.Easy for maintenance and long servic life.





Product Parameter

BMSR-50



Model

BMSR

Shaft power (kW)

0.3~3.54



Air inlet

Flow capacitym³/min

0.65~2.58



Motor

Size

Y80M2-4/Y90S-4...



Power (kW)

0.75-4

Temperature()

20



Operating speed (rmp)

1100~2120

Main machine weight(kg)

128~158

Boosting(kPa)

9.8~58.8







Structures



NO.

Name

Material

Number

NO.

Name

Material

Number

1

Casing

HT250

1

14

Z seal

Butyl rubber

1

2

Impeller

HT250

2

15

Gear

20CrMnTi

2

3

Driven shaft

45

1

16

Gear arresting washer

Q235a

2

4

Follower shaft

45

1

17

Gear arresting nut

35

2

5

Side cover(drive side)

HT250

1

18

Gear case

HT250

1

6

Side cover(gear side)

HT250

1

19

Shaft sleeve

45

1

7

Follower bearing

SUJ2

2

20

End plate

HT250

1

8

Driven bearing

SUJ2

2

21

Flat key

45

1

9

Seal ringgear side

Butyl rubber

2

22

Plug

35

1

10

Seal ringdrive side

Butyl rubber

2

23

Oil level


1

11

Bearing sleeve

45

2

24

Fumeoffer


1

12

Bearing cover(drive side)

HT250

1

25

Grease cup

Brass

2

13

Bearing coverfollow side

HT250

1

26

Gear case gasket

Fish paper



About Us

Shandong Baimai Blower Co., Ltd., is a company with twenty years of experience in machinery manufacturing professional Roots blower manufacturers. The company is located in Zhangqiu Chengdong Industrial Park in Jinan, capital of east 50 km.

Companies leading products BMSR Roots-type blower, Roots vacuum pump is based on a wide range of absorbing foreign advanced technology, based on independent research and development of new efficient Roots blower, and a number of patents for Roots blower, noise and other aspects of energy efficiency and achieved remarkable results. The company has invested more than 30 million yuan, the introduction of horizontal machining centers, vertical machining centers, CNC two-way surface planer, CNC lathes, CNC milling machine, CNC planer, surface grinder, cylindrical grinding machines, and other sophisticated professional equipment, strictly regulate the process, and a number of domestic and foreign research institutes, universities in close cooperation, continue to absorb foreign advanced technology improvement, actively promote the optimization upgrade products, product quality has reached international advanced level.

BMSR total licensing blower clover, two leaves, centrifugation and other major series of hundreds of varieties, widely used in sewage treatment, pneumatic conveying, vacuum packaging, aquaculture, food processing, power, petrochemical, cement, mining and other industries, with low noise, energy saving, stable quality, long life and other advantages. Products sold throughout the country, sales outlets around the capital cities, and exported to many countries in North America, Russia, Malaysia, Indonesia, Vietnam, South Africa. The company passed the ISO9001 international quality system certification, the establishment and improvement of the quality assurance and design, manufacturing, installation and service, from R & D to achieve a start to finished the whole process of autonomous controlled for stability, durability provided sufficiently reliable basis and guarantee.

Shandong Baimai Blower Co., Ltd. sincerely welcome friends to visit.
