- Size: 150
- Place of Origin: Zhangqiu,Shandong
- Brand Name: BAIMAI
- Model Number: TC6518-QTZ160
- Weight: 30000.000 kg
Performance Parameters
Model | QTZ160/6518 | |||
Basic Information | Rated lifting moment (kN.m) | 1600 | ||
Jib length (m) | 65 | |||
Tip load (t) | 1.8 | |||
Max lifting load (t) | 10 | |||
Free standing height (m) | 50 | |||
Max height with attachment (m) | 200 | |||
Details Configuration | ||||
Lifting System | Motor | Power(kw) | 37 | |
Reducer | center distance | 450mm | ||
Lifting Speed(m/min) | (a=2) | (a=4) | ||
Steel Wire Rope | Specification | 6x19-12.5-zs | ||
Slewing System | Motor | Power(kw) | 5.5x2 | |
Reducer | Output Torque(N.m) | 10000 | ||
Reducer Type | XX4-80 | |||
Slewing Speed | (r/min) | 0~0.7 | ||
slewing abutment | Specification | HSW.32.1220 | ||
Luffing System | Motor | Power(kw) | 5.0/3.7/1.3 | |
Luffing Speed | (m/min) | 55/27.5/9.6 | ||
Steel Wire Rope | Specification | 6x1-8-zs | ||
Jacking System | Jacking speed | (m/min) | 0.55 | |
Motor | Power(kw) | 7.5 | ||
Diameter of cylinder | (mm) | φ125/φ90 | ||
Other Accessories | working pressure | 20Mpa | ||
Main Cable | Specification | 3×10mm2 2 | ||
Main Electrical Used Schneider | Stainless Steel Cabinets | Space cragt Cabin | ||
afterbody slewing radius | m | 12.8 | ||
Technical Features

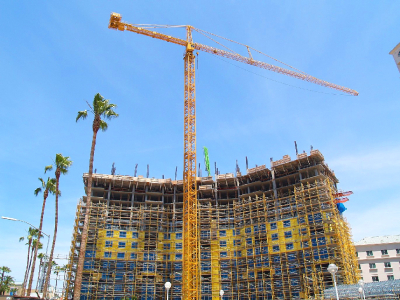

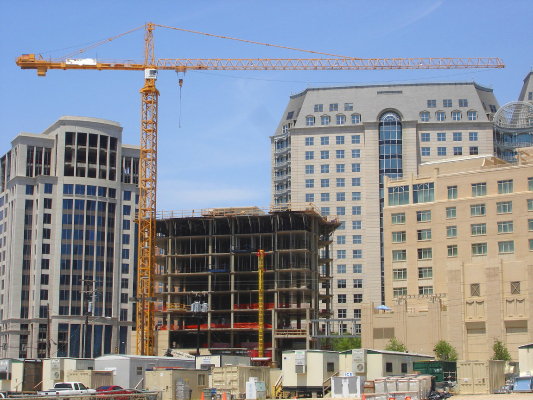

TC6518-QTZ160 Hammer Head Tower Crane
1. Advanced Technology : Performance parameterd and technical indicators have reached the leading domestic and international advance level, the maximum working rang of 65 meters, an increase of tower crane’s working space.
2. Attractive Design: Good Shape the form of an international pop machine, also can customized according to clients’ requirments.
3. High Quality Production : High operating speed , speed performance, smooth and efficient.Rigid doubl-rod boom suspension, rigid, light weight, small cross section.
4. Stable Structure: This kind of crane adopts standard section hydraulic lifting and connecting ensure safe and reliable.
5. Efficient Electrical Control System: SCHNEIDER electrical components ensure reliable and safe mechanism of A CLASS tower crane.
6. Reliable and Safety Cab: Indepedent of side cab, good vision, creativity to the operator a good enviroment. Cast steel brake wheel, hoisting mechanism is tested in multi-ways.
7. Easy Maintenance and Low Cost: We supply maintenance video with tower crane to help clients know how to install tower crane, and how to repair when the tower crane break down.
About us
Shandong Baimai Construction Machinery Co, Ltd, established in 1995, it's a professional designated enterprise for tower crane by Nation quality inspection bureau, now is one of the big construction machinery enterprise in Shandong,Province China. In dec, 2008, we won “Tower crane top fifty enterprise of China” issued by The State Trademark Office. In order to respond to the call of the western development of state, the company established Sichuan Baimai Construction Machinery Co, Ltd in Guang’an Sichuan Province in 2010, the company covers a land of 5300 square meters and has registered capital of RMB 15 million. In 2014, 988sets tower crane were exported to all over the world from our factory, including South-east Asia, the Middle East, Africa etc.
