- Size: 100000
- Place of Origin: Zhangqiu,Shandong,China
- Brand Name: BAIMAI
- Model Number: QTZ40/50
- Weight: 100000.000 kg
o Products informations
o Size: QTZ40/50
o Surface treatment process: shot blasting automotive coating
o Brand: Baimai
o Coler: yellow（off-the-shelf）
o Place of origin: Zhangqiu,Shandong
o Rated lifting capacity： 400-570kn/m
o Maximum lifting load： 4T
o Maximum working range: 42-50m
o Installation height: 30/120
o Total motor power: 25.12kw
o Supply Ability: steady supply all year round

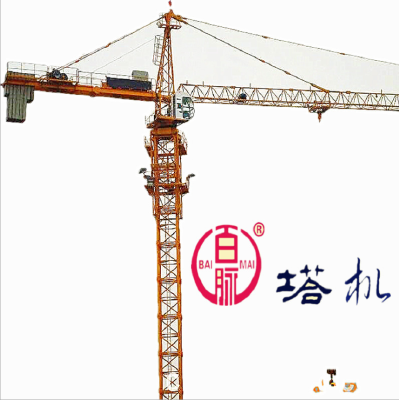

QTZ40 50 / tower crane series contains TC4208 TC4708 TC 4808 TC 4810 TC 5008 TC 5010, with more than 10 years of production experience, strong equipment stability, high safety coefficient, low price are popular in domestic and foreign markets.
- Size: 100000
- Place of Origin: Zhangqiu,Shandong,China
- Brand Name: BAIMAI
- Model Number: QTZ40/50
- Weight: 100000.000 kg
Model Main parameters | QTZ40 (TC4208) | QTZ40 (TC4708) | QTZ40 (4808) | QTZ40 (TC4810) | QTZ50 (TC5008) | QTZ50 (TC5010) |
Rated load moment(KN.m) | 400 | 400 | 400 | 400 | 500 | 570 |
maximum lifting capacity(t) | 4 | 4 | 4 | 4 | 4 | 4/5 |
Maximum working scope(m) | 42 | 46.8 | 48 | 48 | 50 | 50 |
Maximum rated lifting capacity(t) | 0.8 | 0.8 | 0.7 | 1.0 | 0.8 | 1.0 |
Setting height(m) | 30/100 | 30/120 | 30/120 | 30/120 | 35/150 (order requirements) | 35/120 (order requirements) |
Lifting speed(m/min) | (a=2)59/27/6 (a=4)30/12.3/3 | (a=2)62/30/9 (a=4)30/12.3/3 | ||||
Derricking speed(m/min) | 38/26 | |||||
Slewing speed(r/min) | 0-0.62 | |||||
Climbing speed(m/min) | 0.4 | |||||
Total motor power(kw) | 25.12 | 25.12/28.12 | ||||
Working temperature(℃) | -20~ 40 | |||||
Working voltage(V) | 380±5％ | |||||
Maximum wind pressure(N/m²) | 250 | |||||
