- Place of Origin: Shandong China
- Brand Name: BAIMAI
- Model Number: PT60(5010)
- :
- :
- :
- :
| Model | PT60(5010) | |||
| Basic Information | Rated Lifting Moment (kN.m) | 600 | ||
| Jib length(m) | 50 | |||
| Tip Load (T) | 1.0 | |||
| Max. Lifting Load (T) | 4 | |||
| Free Standing Height (m) | 30 | |||
| Max height with attachment(m) | 120 | |||
| Details Configuration | ||||
| Lifting System | Motor | Power(kw) | 15/15/4 | |
| Reducer | center distance | 450mm | ||
| Lifting Speed(m/min) | (a=2) 62/31/7.7 | (a=4) 30/15/3.8 | ||
| Steel Wire Rope | Specification | 6x19-12.5-zs | ||
| Slewing system | Motor | Power(kw) | 3.7 | |
| Reducer | Output Torque(N.m) | 10000 | ||
| Reducer Type | XX4-80 | |||
| Slewing Speed | (r/min) | 0～0.62 | ||
| slewing abutment | Specification | HSW.32.1220 | ||
| Luffing system | Motor | Power(kw) | 2.2/3.3 | |
| Luffing Speed | (m/min) | 33/22 | ||
| Steel Wire Rope | Specification | 6x1-8-zs | ||
| Jacking system | Jacking speed | (m/min) | 0.4 | |
| Motor | Power(kw) | 4 | ||
| Diameter of cylinder | (mm) | φ125/φ90 | ||
| Other Accessories | working pressure | 20Mpa | ||
| Main Cable | Specification | 3×10mm2 2 | ||
| Main Electrical Used Schneider | Stainless Steel Cabinets | Space cragt Cabin | ||

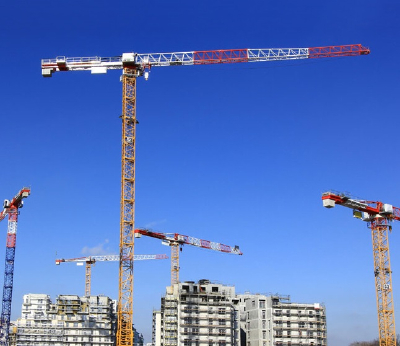

The details information of Flat Top Tower Crane:
>>>The hoisting mechanism:
employs three-speed motor and single-speed ratio reducer, which can perform heavy load at low speed and light load at high speed.
>>>The trolley luffing mechanism:
can drive the trolley to derrick on the horizontal arm, which means convenient installation and placing in position.
>>>The slewing mechanism:
is equipped with a winding motor as well as planetary gear reducer and hydraulic coupling, which ensures high carrying capacity, steady start and reliable operation of the machine in addition to wind resistance when being placed in position.
Mast Section is set into a foundation with steel pedestals.
The main supporting tower of the crane. It is made of steel trussed sections that are connected together during installation.
Mast Section according tube shape : Square shape
Round Shape
Angle Steel
Mast Section according connection shape :
drivepipe ---via bolts to connect two mast sections .
(Use High strength to connect can add the crane stable , Need to tighten the bolts regular )
jointbar ------ via pin roll to connect two mast sections
(can make the buliding more stability and no need frequency maintain)

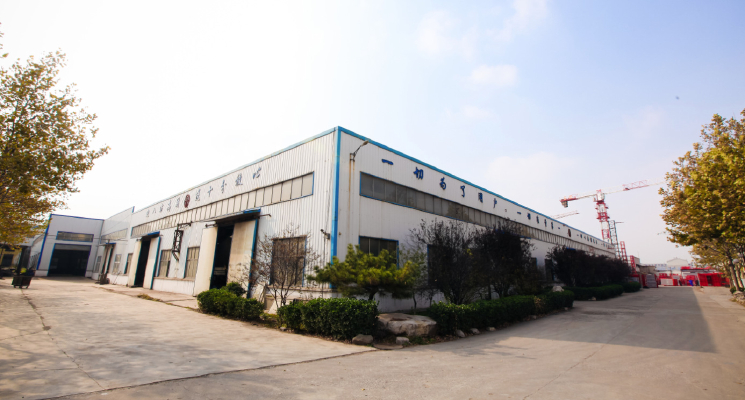

Company Information:
Shandong Baimai Construction Machinery Co., Ltd is the professional crane and lift platform manufacturer in China .We mainly
Design, Manufacture, Installation, Repair , Maintenance, Trade and Export all kinds Construction Hoists,Tower Crane.
We are sure we will be your best choice. Warmly welcome friends come and visit our factory!
Please contact me before more details and best price
Cherry Zhang
Mobile: 86-15820019181
Email:cherry@bmtowercrane.com
- Place of Origin: Shandong China
- Brand Name: BAIMAI
- Model Number: PT60(5010)
- :
- :
- :
- :
| Model | PT60(5010) | |||
| Basic Information | Rated Lifting Moment (kN.m) | 600 | ||
| Jib length(m) | 50 | |||
| Tip Load (T) | 1.0 | |||
| Max. Lifting Load (T) | 4 | |||
| Free Standing Height (m) | 30 | |||
| Max height with attachment(m) | 120 | |||
| Details Configuration | ||||
| Lifting System | Motor | Power(kw) | 15/15/4 | |
| Reducer | center distance | 450mm | ||
| Lifting Speed(m/min) | (a=2) 62/31/7.7 | (a=4) 30/15/3.8 | ||
| Steel Wire Rope | Specification | 6x19-12.5-zs | ||
| Slewing system | Motor | Power(kw) | 3.7 | |
| Reducer | Output Torque(N.m) | 10000 | ||
| Reducer Type | XX4-80 | |||
| Slewing Speed | (r/min) | 0～0.62 | ||
| slewing abutment | Specification | HSW.32.1220 | ||
| Luffing system | Motor | Power(kw) | 2.2/3.3 | |
| Luffing Speed | (m/min) | 33/22 | ||
| Steel Wire Rope | Specification | 6x1-8-zs | ||
| Jacking system | Jacking speed | (m/min) | 0.4 | |
| Motor | Power(kw) | 4 | ||
| Diameter of cylinder | (mm) | φ125/φ90 | ||
| Other Accessories | working pressure | 20Mpa | ||
| Main Cable | Specification | 3×10mm2 2 | ||
| Main Electrical Used Schneider | Stainless Steel Cabinets | Space cragt Cabin | ||
Characteristics of Flat-top tower crane:
1. Safe and convenient. Reduce the dismounting requirements, lower weight, low mounting height, dismount each mast at a time in the air, save the labor cost, safety and fast.
2. Suitable for crossover work of the cranes. Without the tower cap and pull rod, the safety will be increased when there need the crossover work.
3. Suitable for the special requirement about the height. Such as airport nearby, tunnel, workshop ,and the construction site with high-tension cable.
4. Suitable for the construction site that has the requirement about the crane boom. It can be used as internal climbing crane in the high-rise buildings, irregular roof or small areas.
5. The crane boom is good applicability. High-usage, the design of the topless tower crane boom is easy for realizing the serialization and standardization.
