- Size: 150CBM
- Place of Origin: Qingdao
- Brand Name: BAIMAI
- Model Number: TC6013-QTZ100
- Weight: 3000.000 kg
Model | TC6013-QTZ100 | |||
Basic Information | Rated Lifting Moment (kN.m) | 1000 | ||
Jib length(m) | 60 | |||
Tip Load (T) | 1.3 | |||
Max. Lifting Load (T) | 8 | |||
Free Standing Height (m) | 45 | |||
Max Height with attachment(m) | 160 | |||
Details Configuration | ||||
Lifting System
| Motor | Power(kw) | 15/15/4 | |
Reducer | center distance | 450mm | ||
Lifting Speed(m/min) | (a=2) 62/42/10 | (a=4) 31/21/5 | ||
Steel Wire Rope | Specification | 6x19-12.5-zs | ||
Slewing system | Motor | Power(kw) | 3.7 | |
Reducer | Output Torque(N.m) | 10000 | ||
Reducer Type | XX4-80 | |||
Slewing Speed | (r/min) | 0.46/0.7(0～0.6) | ||
slewing abutment | Specification | HSW.32.1220 | ||
Luffing system
| Motor | Power(kw) | 2.2/2.8 | |
Luffing Speed | (m/min) | 33/16.5 | ||
Steel Wire Rope | Specification | 6x1-8-zs | ||
Jacking system
| Jacking speed | (m/min) | 0.7 | |
Motor | Power(kw) | 3 | ||
Diameter of cylinder | (mm) | φ125/φ90 | ||
Other Accessories | working pressure | 20Mpa | ||
Main Cable | Specification | 3×10mm2 2 | ||
Main Electrical Used Schneider | Stainless Steel Cabinets | Space cragt Cabin | ||
afterbody slewing radius | m | 12.8 | ||
Technical Features

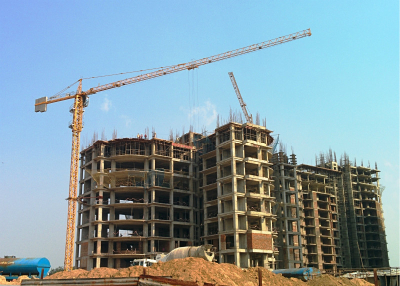

TC6013-QTZ100 Hammerhead Tower Crane
1. Advanced Technology : Performance parameterd and technical indicators have reached the leading domestic and international advance level, the maximum working rang of 60meters, an increase of tower crane’s working space.
2. Attractive Design: Good Shape the form of an international pop machine, also can customized according to clients’ requirments.
3. High Quality Production : High operating speed , speed performance, smooth and efficient.Rigid doubl-rod boom suspension, rigid, light weight, small cross section.
4. Stable Structure: This kind of crane adopts standard section hydraulic lifting and connecting ensure safe and reliable.
5. Efficient Electrical Control System: SCHNEIDER electrical components ensure reliable and safe mechanism of A CLASS tower crane.
6. Reliable and Safety Cab: Indepedent of side cab, good vision, creativity to the operator a good enviroment. Cast steel brake wheel, hoisting mechanism is tested in multi-ways.
7. Easy Maintenance and Low Cost: We supply maintenance video with tower crane to help clients know how to install tower crane, and how to repair when the tower crane break down.
Service
Warranty
Baimai is fully committed to responsive equipment maintenance and service. The warranty of our tower cranes is 12 months, and we supply 7x24 hours free technical support and consult , if there is any technical problem, we will help you figure it out immediately.
Quality Assurance
We thoroughly inspect every section of equipment for structural, electrical, and mechanical problems as it arrives to our factory. All maintenance, repairs, and inspections are documented by qualified inspectors in factory and tracked in our quality control database.
Technical Support
We will provide free technical consult to exclude the fear of worries in the rear for clients. If required, we can dispatch engineers to help you get the installation and setting jobs done.
Transport
We will arrange 40 HQ containers for tower crane, wooden cage for electrical parts, steel box for small parts. You can entrust us to buy insurance before shipment or add the insurance by yourself. If you have special requirements, please contact us freely, we will arrange for you the appropriate mode of transport.
About us
Shandong Baimai Construction Machinery Co, Ltd, established in 1995, it's a professional designated enterprise for tower crane by Nation quality inspection bureau, now is one of the big construction machinery enterprise in Shandong,Province China. In dec, 2008, we won “Tower crane top fifty enterprise of China” issued by The State Trademark Office. In order to respond to the call of the western development of state, the company established Sichuan Baimai Construction Machinery Co, Ltd in Guang’an Sichuan Province in 2010, the company covers a land of 5300 square meters and has registered capital of RMB 15 million. In 2014, 988 sets tower crane were exported to all over the world from our factory, including South-east Asia, the Middle East, Africa etc.
If you want to know about our products and company, please browse our website: www.bmtowercrane.com.
