- Place of Origin: Shandong Province
- Brand Name: BAIMAI
- Model Number: TC5510

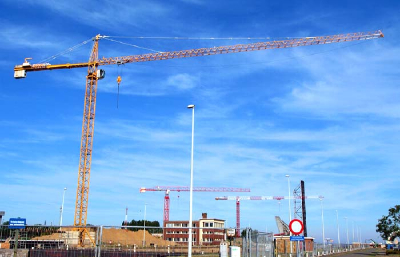

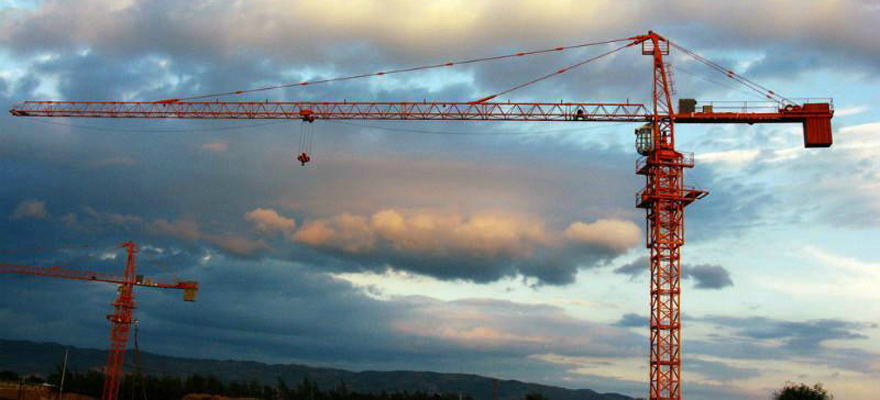

Characteristics of QTZ80 tower crane:
Performance parameters and technical indicators have reached the leading domestic and international advanced level, the maximum working range of 47 meters, an increase of tower crane's working space.
2. Shape the form of an international pop machine, nice.
3. High operating speed, speed performance, smooth and efficient.
Rigid double-rod boom suspension, rigid, light weight, small cross section
4. Wind resistance, good condition.
5. Tower Crane steel is high quality raw material; SCHNEIDER electrical components ensure reliable and safe mechanism of A CLASS tower crane; Stable and powering slewing mechanism adopts winding motor and hydraulic transmission; complete a variety of safety devices, ensure safe and reliable.
6. Independent of side cab, good vision, creativity to the operator a good working environment. Cast steel brake wheel, hoisting mechanism is tested in multi-ways;
7. Easy to use and simple maintenance.
- Place of Origin: Shandong Province
- Brand Name: BAIMAI
- Model Number: TC5510
Technical Parameters:
Model | QTZ80/5510 | |||
Basic Information | Rated Lifting Moment (kN.m) | 800 | ||
Max. Lifting Load (T) | 6 | |||
Tip Load (T) | 1.0 | |||
Free Standing Height (m) | 40 | |||
Climbing(m) | 151.2 | |||
Jib length(m) | 55 | |||
Details Configuration | ||||
Lifting Mechanism 起升机构 | Motor | Power(kw) | 24/24/5.4 | |
Reducer | center distance | 450mm | ||
Lifting Speed(m/min) | (a=2) 80/40/8.5 | (a=4) 40/20/4.5 | ||
Steel Wire Rope | Specification | 6x19-12.5-zs | ||
SlewingMeachanism 回转机构
| Motor | Power(kw) | 3.7x2 | |
Reducer | Output Torque(N.m) | 10000 | ||
Reducer Type | XX4-80 | |||
Slewing Speed | (r/min) | 0～0.62 | ||
slewing abutment(回转支撑) | Specification | HSW.32.1220 | ||
Luffing Meachanism 变幅机构 | Motor | Power(kw) | 3.3/2.2 | |
Luffing Speed | (m/min) | 48/24 | ||
Steel Wire Rope | Specification | 6x1-8- | ||
Jacking Mechanism 顶升机构 | Jacking speed | (m/min) | 0.4 | |
Motor | Power(kw) | 7.5 | ||
Diameter of cylinder | (mm) | φ125/φ90 | ||
Other Accessories | working pressure | 20Mpa | ||
Main Cable | Specification | 3×10mm2 2 | ||
Main Electrical Used Schneider | Stainless Steel Cabinets | Space cragt Cabin | ||
afterbody slewing radius | m | 12.8 | ||
