- Size: 150CBM
- Place of Origin: Shandong Province
- Brand Name: BAIMAI
- Model Number: QTZ50(TC5010)
- Weight: 30000.000 kg
- :
- :
- :
- :
- :
- :
- :
Technical parameters
Max. Lifting Load | 4t |
Tip Load | 1t |
Max. Lifting Height | 120m |
Jib length / Span | 50m |
Free standing height | 30m |
Total motor power | 25.12kw |
Hoisting speed | 0.4 m/min |
Slewing speed | 0-0.62 r/min |
Trolleying speed | 38m/min |
Power supply | 380V/50Hz or according to client's requirments |
Electric switch box | Schneider |
Mast section | 2.0*2.0*3.0m (split structure) |
1.6*1.6*2.5m | |
Main material | 200*20mm/angle steel/Q345B |

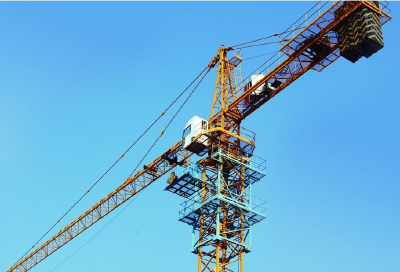

Features of Affordable tower crane on building
· Hoisting Mechanism
· The Affordable tower crane on building uses a large-size winding drum and the motor with three kinds of speed or with variable frequency system.
· Slewing Mechanism
· The continuously variable frequency speed regulation helps the balance crane to work with stable starting and braking as well as fast and accurate positioning. Therefore, our Affordable tower crane on building becomes the leading one in terms of performance and operability at home and abroad.
· Luffing Mechanism
· Adopting variable frequency speed regulation, the luffing mechanism works stably with little impact.
· Control System
· The PLC allows for automatic detection of electrical fault and issues corresponding sound and light alarm. Critical components are all procured from international famous enterprises.
· Safety Protection Device
· Our Affordable tower crane on building is equipped with many advanced or ingenious components apart from regular safety devices used in ordinary cranes for the purpose of enhancing its security and operating convenience.
· Structure
· Tanks to the advanced design tools, such as electro-mechanical design, CAD design, optimization design, and modular design, the tower crane proves to be a kind of optimum construction equipment that shows not only superb strength, stiffness and fatigue resistance but also outstanding comprehensive performance and reliability.
