- Place of Origin: Shandong province
- Brand Name: BAIMAI
- Model Number: 5030-QTD160
- :
- :
- :
- :
- :

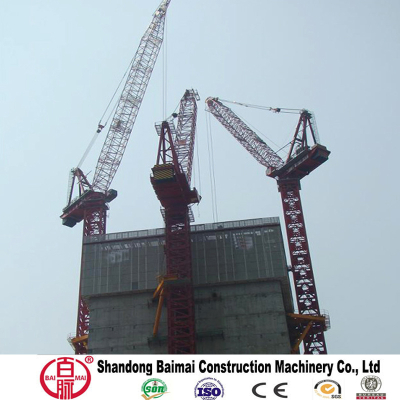

Features of QTD160 (5030 )Tower Crane
1) Quality manufacturing designed for reliable performance
2) Ergonomic cabins provide the comfort required for long hours on the job
3) Modular technology, secure slug bolt connections, reliable electronics and energy-saving drive.
4) Full set safety devices for the whole tower crane to make sure safety working condition.
Model | Luffing Jib Tower Crane 5030-QTD160 | |||
Basic Information | Jib length(m) | 50 | ||
Tip Load (T) | 3 | |||
Max. Lifting Load (T) | 10 | |||
Free Standing Height (m) | 26 | |||
Max height with attachment(m) | 200 | |||
Details Configuration | ||||
Lifting System | Motor | Power(kw) | 45 | |
Rope length | 610M | customized | ||
Lifting Speed(m/min) | (a=2) 0-42/0-76 | (a=3) 0-28/0-51 | (a=4) 0-21/0-38 | |
Lifting Load(t) | (a=2) 5/2.5 | (a=3) 7.5/3.75 | (a=4) 10/5 | |
Parameter | Specification | 60LVF25 | ||
Slewing system | Reducer torque | (N.m) | 2x95 | |
Slewing Speed | (r/min) | 0-0.8 | ||
Parameter | Specification | RCV95 | ||
Luffing system | Motor | Power(kw) | 45 | |
Luffing Speed | (m/min) | 2.5 | ||
Parameter | Specification | 60VVF40 | ||
Travelling system | Motor | (KW) | 2x5.2 | |
Travelling Speed | (m/min) | 0-25 | ||
Parameter | Specification | RT324 | ||
Power supply | 380V( -5%)50HZ | |||
Machine power | 115KW | |||
Load diagrams
m | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |||
50m | 2falls | 5t-4.1m-34m | t | 5 | 5 | 5 | 4.88 | 4.05 | 3.42 | 3 |
Jib length | m | 20 | 25 | 30 | 35 | 40 | 45 | ||
45m | 2falls | 3t-3.7m-34m | t | 5 | 5 | 5 | 4.93 | 4.12 | 3.6 |
3falls | 7.5t-3.7m-26m | t | 7.5 | 7.5 | 6.13 | 4.93 | 4.12 | 3.6 | |
4falls | 10t-3.7m-20m | t | 10 | 7.65 | 6.13 | 4.93 | 4.12 | 3.6 | |
Jib length | m | 20 | 25 | 30 | 35 | 40 | ||
40m | 2falls | 5t-3.2m-36m | t | 5 | 5 | 5 | 5 | 4.4 |
3falls | 7.5t-3.2m-26m | t | 7.5 | 7.5 | 6.13 | 5.08 | 4.4 | |
4falls | 10t-3.2m-20m | t | 10 | 7.65 | 6.13 | 5.08 | 4.4 | |
Jib length | m | 20 | 25 | 30 | 35 | ||
35m | 2falls | 5t-2.8m-35m | t | 5 | 5 | 5 | 5 |
3falls | 7.5t-2.8m-26m | t | 7.5 | 7.5 | 5.23 | 5.3 | |
4falls | 10t-2.8m-20m | t | 10 | 7.7 | 6.23 | 5.3 | |
Jib length | m | 20 | 25 | 30 | ||
30m | 2falls | 5t-2.3m-30m | t | 5 | 5 | 5 |
3falls | 7.5t-2.3m-24m | t | 7.5 | 7.5 | 6.5 | |
4falls | 10t-2.3m-20m | t | 10 | 7.8 | 6.5 | |
If you're not sure about the type of tower crane you need, please tell us the below basic parameters to confirm tower crane model:
a. Building height or tower crane working height.
b. Max load capacity and tip load capacity.
c. Span or jib length
d. Other Special requirements, such as optional parts.
About us:
Baimai is a professional tower crane and construction elevator manufacturer with over 21 years of experience in China. we were builted in 1995 which is a professional designated enterprise for tower crane by State Bureau of Quality Technical Supervision.The company always insist on "developing depending on technology",and makes good use of research institutes,colleages and its own power,we have produced many types of tower crane one after the other,such as topkit tower crane, topless tower crane, luffing jib tower crane etc ,including the SC200/200 construction hoist.
We are dedicated to improve the mechanization levels of the entire building industry, offering the best service and product to the society.
For the best win-win business,we builded two factories, respectively located in shandong province and sichuan province, so we can control the cost, delivery time and choose the appropriate port for you,we also promised to offer you the best price and provide you the quick feedback after-sale service. .
The General Manager Niu Yuxun on behalf of all staff to invite the inland and overseas guests to visit our factory and have a business with us .
We are dedicated to provide you professional solutions with A Class Service!
