- Size: 150
- Place of Origin: Jinan,Shandong,China
- Brand Name: BAIMAI
- Model Number: QTZ100(6013)
- Weight: 25000.000 kg
Quality:The key to building a long term business relationship is high quality,for us, we can guarantee the quality with our 22 years'experience,and in 22 years,there is no casually accident with our tower crane.
Price: As you know,we are factory,we are manufactuer, we can promise you that we will give you the best price than others. We understand how hard it is to open a new market so we will give the high quality tower crane with affordable price.
After service: If you have any technical matter which you can't solve by yourself, we can send our technicist to your country to help you solve that.
Quick Details

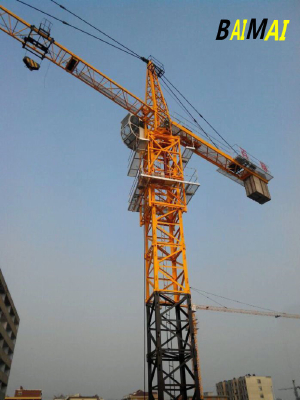

1. Feature: Tower Crane
2. Condition: New
3. Application: Building, Bridge and other Construction
4. Rated Lifting Moment: 1000KN.m
5. Max. Lifting Load: 6 Ton
6. Max. Lifting Height: 150M
7. Jib Length: 60 M
8. Certification: CE /ISO/SGS
9. Mast section materials: Q345B Angle Bar
10. Mast Section Size: 2.0M*2.0M*3M
11. Main Chord of Mast Section: 200MM*200MM*20MM
12. Free Standing Height: 45M
13. Max. Height: 150M
14. Warranty: 12 Months
15. Foundation Size: 7.8M*7.8M*1.9M
Item | Parameter | ||||||
Free standing height (m) | 45 | ||||||
Max height with attachment (m) | 150 | ||||||
Working range can be adjusted(m) | 60 | ||||||
Min working range(m) | 3 | ||||||
Max lifting capacity(t) | 8 | ||||||
Tip load @ 56m(t) | 1.3 | ||||||
Hoist mechanism | Falls | 2 | 4 | ||||
Lifting capacity(t) | 3 | 3 | 1.5 | 6 | 6 | 3 | |
Speed(m/min) | 8.5 | 40 | 80 | 4.25 | 20 | 40 | |
Motor | YZTD200M | ||||||
Trolleying mechanism | Speed(m/min) | 24/48 | |||||
Motor | YD100L | ||||||
Slewing mechanism | Speed(r/min) | 0.62 | |||||
Motor | YZR132S-6 | ||||||
Climbing speed(m/min) | 0.55 | ||||||
Counterweight(t) | 15 | ||||||
Mast section size(L×W×H)mm | 1.833x1.833x2.8 | ||||||
Working temperature | -20— 40℃ | ||||||
Max working wind (m/s) | 8 | ||||||
Total power (KW) | 36.7 | ||||||
Rated working voltage & current | 380v/50HZ | ||||||
