- Place of Origin: China
- Brand Name: BAIMAI
- Model Number: QTZ100(6013)
- Weight: 5000000.000 kg
Quick Details
Feature: Tower Crane
Condition: New
Application: Costrucation
Rated Loading Capacity: 1.30 Ton
Rated Lifting Moment: 1000KN/M
Max. Lifting Load: 8 Ton
Max. Lifting Height: 160m
Span: 60
Place of Origin: Shandong, China (Mainland)
Brand Name: BAIMAI
Model Number: 6013
Certification: ISO9001-2008
Warranty: Lifetime Warranty
After-sales Service Provided: No overseas service provided
Motor: JiangTe
Working temperature: -20- 40
Tib Load: 1.3 Ton
Independ setting height: 45mm
- Place of Origin: China
- Brand Name: BAIMAI
- Model Number: QTZ100(6013)
- Weight: 5000000.000 kg

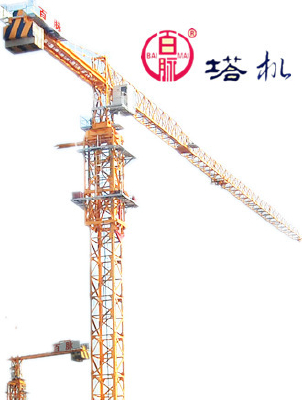

Bai Mai brand tower crane QTZ100(6013) :
1.Performance introduction for tower crane QTZ100(6013)
Name | Unit | Parameters | |||||||
Nominal hoisting moment | kN.m | 1000 | |||||||
Max. Hoisting weight | t | 8 | |||||||
Rated hoisting weight at jib nose | t | 1.3 | |||||||
Working radius | m | 2.5—60 | |||||||
Height (m) | Anchoring | M | 45 | ||||||
Climbing | m | 150 | |||||||
Hoisting speed | Magnification | 2X | 4X | ||||||
Hoisting speed | M/min | 8 | 40 | 80 | 4 | 20 | 40 | ||
Max. Hoisting weight | t | 3 | 3 | 1.5 | 6 | 6 | 3 | ||
Swing speed | R/min | 0.7 | |||||||
Radius changing speed | M/min | 22/44 | |||||||
Top rising speed | M/min | 0.5 | |||||||
Tower crane weight | Net weight (anchoring) | T | |||||||
Ballast weight | T | ||||||||
Total weight (anchoring) | T | ||||||||
Working swing radius | M | ||||||||
Rear swing radius | M | 12.06 | |||||||
Maximum working wind speed | M/S | 20 | |||||||
Maximum wind speed for top rising | M/S | 13 | |||||||
Ambient temperature | °C | -20~ 40 | |||||||
