- Place of Origin: Shandong
- Brand Name: BAIMAI
- Model Number: QTZ50-TC5011

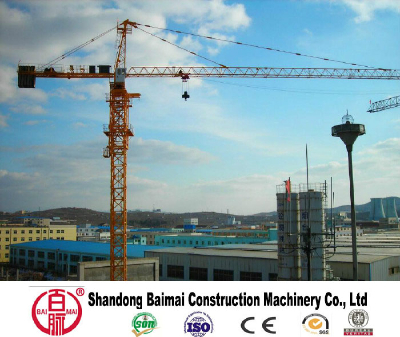

QTZ5011 5t Tower Crane for Sale
Quick Details:
| Feature | Tower Crane | Condition | New | Application | construction site |
| Rated Loading Capacity | 5t | Rated Lifting Moment | 630KN.M, 630KN.M | Max. Lifting Load | 5t, 5T |
| Max. Lifting Height | 120m, 120m | Span | 3-50m | Place of Origin | Shandong, China (Mainland) |
| Brand Name | Baimai | Model Number | QTZ5011 | Certification | ISO, CE |
| Warranty | 12 months from the BL date | After-sales Service Provided | Engineers available to service machinery overseas | Tip Load | 1.1T |
| Free standing height | 30m | Power supply | 380V/50Hz, 380V/60Hz, 220V/50Hz | Mast section dimension | 1.6*1.6*2.5m(block structure) |
| Main material | 160*16 mm(angle steel) | Power Capacity | 24.9Kw | Electric switch box | Schneider |
Technical Parameters
name | unit | QTZ63/5010 | |||||||
rated hoisting moment 额定起重力矩 | kN.m | 630 | |||||||
max.hoisting moment 最大额定起重力矩 | kN.m | 630 | |||||||
max.hoisting load 最大起重量 | t | 5 | |||||||
Tipload最大额定起重量 | t | 1.095(2)/0.989(4) | |||||||
working radius 工作范围 | m | 3～50 | |||||||
hoisting height 起升高度 | free-standing 独立高度 | m | 35 | ||||||
Climbing 附着 | m | 120 | |||||||
hoisting speed 起升速度 | fall | a=2 | a=4 | ||||||
hoisitng speed 起升速度 | m/min | 8.58 | 11.7 | 39 | 11.7 | 39 | 78 | ||
max.load 最大承重 | t | 2.5 | 2.5 | 1 | 5 | 5 | 2.5 | ||
slewing speed 回转速度 | r/min | 0.6 | |||||||
trolleying speed小车速度 | m/min | 38.6/25.2 | |||||||
top-rising speed 顶升速度 | m/min | 0.7 | |||||||
tower crane weight 塔机重量 | structure weight钢结构重量 | t | 24.1 | ||||||
balance weight 配重重量 | t | 10.5 | |||||||
tower crane weight 塔机重量 | t | 34.6 | |||||||
max.slewing radius 回转半径 | m | 51.2 | |||||||
afterbody slewing radius 尾部回转半径 | m | 11.86 | |||||||
max.working wind-speed(not more than) 最大工作风速 | m/s | 20 | |||||||
max.height wind-speed(not more than) 最高风速 | m/s | 12 | |||||||
working environment temperture | °C | ,-20～40 | |||||||
hoisting mechnism 起机构 | motor | type | YZTD200L-4/8/24 | ||||||
power | KW | 18/18/5 | |||||||
speed | r/min | 1440/720/220 | |||||||
braker | type | YWZ250/45 | |||||||
brake moment | N.m | ||||||||
hydraulic impeller | |||||||||
reducer | type | ||||||||
reduction ratio | |||||||||
steel rope | 12.5 | ||||||||
slewing mechnism 回转机构 | motor | type | YZR132M2-4 | ||||||
power | KW | 5.5 | |||||||
speed | r/min | 908 | |||||||
braker | |||||||||
reducer | type | TX130-240 | |||||||
fluid coupling | type | YOX-280A | |||||||
slewing abutment | 011.40.1120 | ||||||||
trolleying mechnism 变幅机构 | motor | type | YDZ112M-4/6 | ||||||
power | KW | 2.2/2.8 | |||||||
speed | r/min | 930/1410 | |||||||
reducer | type | TXB300 | |||||||
reduction ratio | |||||||||
steel rope | 7.7 | ||||||||
top-rising mechnism顶升机构 | motor | type | |||||||
power | KW | 5.5kW | |||||||
speed | r/min | ||||||||
hydaulic oilcylinder | type | ||||||||
piston stroke | mm | 1300 | |||||||
working pressure | Mpa | 20 | |||||||
Feature
1. It has ultra long arm and large coverage area.
2. The standard segment section is wide. Rigidity is good. Complete machine is stable and
swings slightly when craning.
3. The standard segment principal branch is big.
4. The electrical system uses domestic high quality or importing parts. Its performance is
stable and reliable.
5. The standard segment, drawbar, top-bottom turntable and other major components is
welded by CO2 which penetrates deeply and deforms smally.
6. The slewing mechanism adopts winding motor which starts smoothly and reliably and
places conveniently and efficiently.
7. Hoisting mechanism with good performance in speeding, lifting and declining smoothly.
Our Services
1.We can design the customerized tower crane as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the tower crane break down to help you repair.
Company Information
Shandong Baimai Construction Machinery Co., Ltd is the professional crane and lift platform manufacturer in China .We mainly
Design, Manufacture, Installation, Repair , Maintenance, Trade and Export all kinds Electric Hoists,
Overhead Cranes, Jib Cranes,Tower Crane, and so on. We are sure we will be your best choice.
Please contact me before more details and best price
Cherry Zhang
Mobile: 86-15820019181
Email:cherry@bmtowercrane.com
