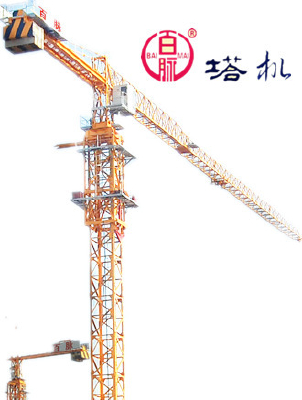

![QTZ63[TC5010] tower crane of high quality products made in baimai China brand](https://www.makeronly.com/res/qgmy/img/SHOP-2172/item/400x400/2016071108533428736.jpg)
- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Place of Origin: China
- Brand Name: BAIMAI
- Model Number: QTZ63[TC5010]
- Weight: 5000.000 kg
Quick Details
Feature: Tower Crane
Condition: New
Application: Vertical lift machine building industry
Rated Loading Capacity: 5t
Rated Lifting Moment: 630kn/m
Max. Lifting Load: 5t
Max. Lifting Height: 151.2
Span: 2.5-50
Place of Origin: Shandong, China (Mainland)
Brand Name: baimai
Model Number: TC5010
Certification: ISO CE
Warranty: Steel structure warranty for life
After-sales Service Provided: Overseas third-party support available
color: custom
- Place of Origin: China
- Brand Name: BAIMAI
- Model Number: QTZ63[TC5010]
- Weight: 5000.000 kg
Main Technical Parameters
Name | Unit | Parameters | |||||||
Nominal hoisting moment | kN.m | 630 | |||||||
Max. Hoisting weight | t | 5 | |||||||
Rated hoisting weight at jib nose | t | 1 | |||||||
Working radius | m | 2.5—50 | |||||||
Height (m) | Anchoring | M | 30 | ||||||
Climbing | m | 150 | |||||||
Hoisting speed | Magnification | 2X | 4X | ||||||
Hoisting speed | M/min | 8 | 40 | 80 | 4 | 20 | 40 | ||
Max. Hoisting weight | t | 3 | 3 | 1.5 | 6 | 6 | 3 | ||
Swing speed | R/min | 0.7 | |||||||
Radius changing speed | M/min | 22/44 | |||||||
Top rising speed | M/min | 0.5 | |||||||
Tower crane weight | Net weight (anchoring) | T | |||||||
Ballast weight | T | ||||||||
Total weight (anchoring) | T | ||||||||
Working swing radius | M | ||||||||
Rear swing radius | M | 12.06 | |||||||
Maximum working wind speed | M/S | 20 | |||||||
Maximum wind speed for top rising | M/S | 13 | |||||||
Ambient temperature | °C | -20~ 40 | |||||||
