- Place of Origin: Shandong
- Brand Name: BAIMAI
- Model Number: TC4708-QTZ40
TC4708 China Tower Crane with CE ISO Certificate
Technical Parameter:
Model | QTZ40/4708 | |||
Basic Information | Rated Lifting Moment (kN.m) | 400 | ||
Max. Lifting Load (T) | 4 | |||
Tip Load (T) | 0.8 | |||
Free Standing Height (m) | 30 | |||
Climbing (m) | 120 | |||
Details Configuration | ||||
Lifting Mechanism 起升机构 | Motor | Power(kw) | 15/15/4 | |
Reducer | center distance | 450mm | ||
Lifting Speed(m/min) | (a=2) 62/42/10 | (a=4) 31/21/5 | ||
Steel Wire Rope | Specification | 6x19-12.5-zs | ||
Slewing Meachanism 回转机构 | Motor | Power(kw) | 3.7 | |
Reducer | Output Torque(N.m) | 10000 | ||
Reducer Type | XX4-80 | |||
Slewing Speed | (r/min) | 0.46/0.7(0~0.6) | ||
slewing abutment(回转支撑) | Specification | HSW.32.1220 | ||
Luffing Meachanism 变幅机构 | Motor | Power(kw) | 2.2/2.8 | |
Luffing Speed | (m/min) | 33/16.5 | ||
Steel Wire Rope | Specification | 6x1-8-zs | ||
Jacking Mechanism 顶升机构 | Jacking speed | (m/min) | 0.7 | |
Motor | Power(kw) | 3 | ||
Diameter of cylinder | (mm) | φ125/φ90 | ||
Other Accessories | working pressure | 20Mpa | ||
Main Cable | Specification | 3×10mm2 2 | ||
Main Electrical Used Schneider | Stainless Steel Cabinets | Space cragt Cabin | ||
afterbody slewing radius | m | 12.8 | ||

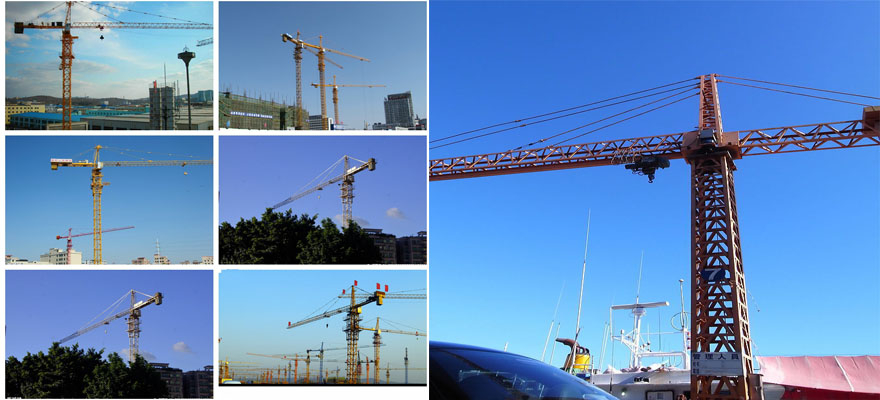

Characteristics of QTZ tower crane:
1. Performance parameters and technical indicators have reached the leading domestic and international advanced level, the maximum working range of 47 meters, an increase of tower crane's working space.
2. Shape the form of an international pop machine, nice.
3. High operating speed, speed performance, smooth and efficient.
Rigid double-rod boom suspension, rigid, light weight, small cross section
4. Wind resistance, good condition.
5. Tower Crane steel is high quality raw material; SCHNEIDER electrical components ensure reliable and safe mechanism of A CLASS tower crane; Stable and powering slewing mechanism adopts winding motor and hydraulic transmission; complete a variety of safety devices, ensure safe and reliable.
6. Independent of side cab, good vision, creativity to the operator a good working environment. Cast steel brake wheel, hoisting mechanism is tested in multi-ways;
7. Easy to use and simple maintenance.

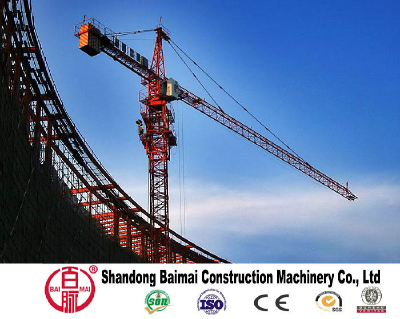

Company Information:
Shandong Baimai Construction Machinery Co., Ltd is the professional crane and lift platform manufacturer in China .We mainly
Design, Manufacture, Installation, Repair , Maintenance, Trade and Export all kinds Electric Hoists,
Overhead Cranes, Jib Cranes,Tower Crane, and so on. We are sure we will be your best choice.
Please contact me before more details and best price
Cherry Zhang
Mobile: 86-15820019181
Email:cherry@bmtowercrane.com
