- Place of Origin: China
- Brand Name: BAIMAI
- Model Number: QTZ125A(6018)
- Weight: 5000000.000 kg
Quick Details
Feature: Tower Crane
Condition: New
Application: Vertical lift machine building industry
Rated Loading Capacity: 1.8T
Rated Lifting Moment: 1250KN.m
Max. Lifting Load: 8T
Max. Lifting Height: 151.2
Span: 2.5-60m
Place of Origin: Shandong, China (Mainland)
Brand Name: BAIMAI
Model Number: QTZ125A(6018)
Certification: ISO CE
Warranty: Steel structure warranty for life
After-sales Service Provided: Overseas third-party support available
setting height: 45/180m
derricking speed: 59/28/8.79m/min
slewing speed: 0-0.62r/min
climbing speed: 0.4m/min
working volage: 380±5%
the max working wind pressure: 250N/㎡
- Place of Origin: China
- Brand Name: BAIMAI
- Model Number: QTZ125A(6018)
- Weight: 5000000.000 kg

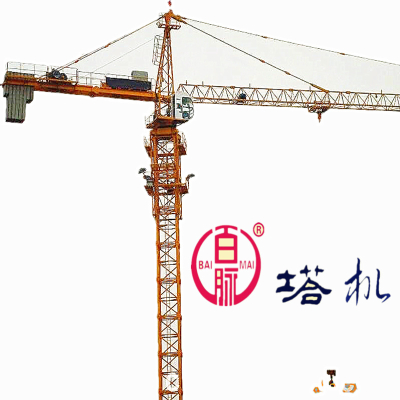

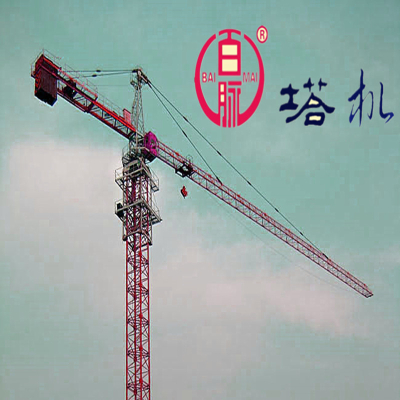

Bai Mai brand tower crane QTZ125A(6018) :
1.Company Profile:
We started manufacturing tower cranes from the very year our firm founded in 2001. And now can offer tower cranes with a maximum lifting load form 2.5t to 16t, which is from QTG25, QTZ25, QTZ31.5, QTZ40, QTZ63, QTZ80, QTZ100, QTZ125, QTZ160 and QTZ260, to meet the demand of various kinds of customers in different construction works.
With climbing cage, our crane can change the height itself by adding and reducing its standard sections.
And the same tower crane can have different lengths of jib with different quantities of jib sections. We will offer the drawing of the same when the goods are delivered.
The pedestal can be fixed type of crossing beams and can also be with counterweight to save the space.
Our tower crane with drivers cabin with electric fans or air conditioners according to customers requirements.
For the safety, we can also offer indicator to show the load and height data of crane in service.
Your satisfaction, our pursuit!
Product Description
China shandong baimai construction machinery co., LTD. Welcome new and old friends come to visit our factory
contact
Factory production of tower crane, can give you a satisfactory ex-factory price, quality assurance, welcome to visit
Main Technical Parameters
Name | Unit | Parameters | |||||||
Nominal hoisting moment | kN.m | 1600 | |||||||
Max. Hoisting weight | t | 10 | |||||||
Rated hoisting weight at jib nose | t | 1.8 | |||||||
Working radius | m | 2.5—65 | |||||||
Height (m) | Anchoring | M | 50 | ||||||
Climbing | m | 150 | |||||||
Hoisting speed | Magnification | 2X | 4X | ||||||
Hoisting speed | M/min | 8 | 40 | 80 | 4 | 20 | 40 | ||
Max. Hoisting weight | t | 3 | 3 | 1.5 | 6 | 6 | 3 | ||
Swing speed | R/min | 0.7 | |||||||
Radius changing speed | M/min | 22/44 | |||||||
Top rising speed | M/min | 0.5 | |||||||
Tower crane weight | Net weight (anchoring) | T | |||||||
Ballast weight | T | 12 | |||||||
Total weight (anchoring) | T | ||||||||
Working swing radius | M | ||||||||
Rear swing radius | M | 12.06 | |||||||
Maximum working wind speed | M/S | 20 | |||||||
Maximum wind speed for top rising | M/S | 13 | |||||||
Ambient temperature | |||||||||
