- Size: 1
- Place of Origin: Jinan,Shandong,China
- Brand Name: BAIMAI
- Model Number: BMSR
- Weight: 1272.000 kg
In the blower caseing three installs two groupes of triplicate blade impeller.which.drove by a pair of synchronous gears.moves right-about to and fro.The low pressure will be formed because of the rooling of the impeller in the air inlet whose volume is v1.Meanwhile the air drawn in with a volume of v2 produces the high pressure due to the growing of the resistance in the air outlet.and then the air is got off.As there are certain gaps between the impellers and between the impeller and casing.no friction is produced.so it can run for a long time.

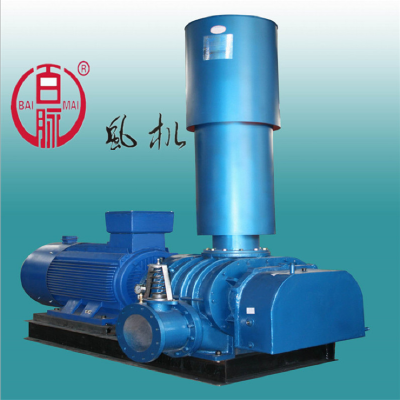

Brand:Baimai Size:BMSR200 Type:Roots blower
Electric Power:380V Airflow Direction:inhale from top; Material:cast steel
exhale from side
Flow Pressure:medium Performance:lower noise Use:pipeline cleaning
pressure
Weight:1272(kg) Motor Power:55(kw) flow capacity:58.81(m³/min)
- Size: 1
- Place of Origin: Jinan,Shandong,China
- Brand Name: BAIMAI
- Model Number: BMSR
- Weight: 1272.000 kg
| Series | Rateof Flow（m³/min） | Pressure Rise（kpa） | Shaft Power(kw) | Motor Power(kw) | |||||||
| BMSR50 | 0.49 | 9.8-78.4 | 3.54 | 4 | |||||||
| BMSR65 | 0.76 | 9.8-78.4 | 4.46 | 5.5 | |||||||
| BMSR80 | 2.07 | 9.8-78.4 | 7.42 | 11 | |||||||
| BMSR100 | 2.94 | 9.8-78.4 | 12.15 | 15 | |||||||
| BMSR125 | 4.93 | 9.8-78.4 | 16.83 | 16.83 | |||||||
| BMSR150 | 9.12 | 9.8-78.4 | 18.50 | 22 | |||||||
| BMSR175 | 19.65 | 9.8-78.4 | 45.95 | 55 | |||||||
| BMSR200 | 26.33 | 9.8-78.4 | 80.12 | 90 | |||||||
| BMSR250 | 57.10 | 9.8-78.4 | 117.3 | 132 | |||||||
| BMSR350 | 78.41 | 9.8-78.4 | 160.71 | 250 | |||||||
NO. | Name | Material | Number | NO. | Name | Material | Number |
1 | Casing | HT250 | 1 | 14 | Z seal | Butyl rubber | 1 |
2 | Impeller | HT250 | 2 | 15 | Gear | 20CrMnTi | 2 |
3 | Driven shaft | 45 | 1 | 16 | Gear arresting washer | Q235a | 2 |
4 | Follower shaft | 45 | 1 | 17 | Gear arresting nut | 35 | 2 |
5 | Side cover(drive side) | HT250 | 1 | 18 | Gear case | HT250 | 1 |
6 | Side cover(gear side) | HT250 | 1 | 19 | Shaft sleeve | 45 | 1 |
7 | Follower bearing | SUJ2 | 2 | 20 | End plate | HT250 | 1 |
8 | Driven bearing | SUJ2 | 2 | 21 | Flat key | 45 | 1 |
9 | Seal ring（gear side） | Butyl rubber | 2 | 22 | Plug | 35 | 1 |
10 | Seal ring（drive side） | Butyl rubber | 2 | 23 | Oil level | 1 | |
11 | Bearing sleeve | 45 | 2 | 24 | Fumeoffer | 1 | |
12 | Bearing cover(drive side) | HT250 | 1 | 25 | Grease cup | Brass | 2 |
13 | Bearing cover（follow side） | HT250 | 1 | 26 | Gear case gasket | Fish paper |
